SCompoundWidget
这个类是单一子槽类,很多可以挂单个控件的类都会从这个类基础。
它的内部定义了一个槽类,可以挂载一个子SWidget,我们可以看看它的结构。
struct FCompoundWidgetOneChildSlot : ::TSingleWidgetChildrenWithBasicLayoutSlot<EInvalidateWidgetReason::None>
{
friend SCompoundWidget;
using ::TSingleWidgetChildrenWithBasicLayoutSlot<EInvalidateWidgetReason::None>::TSingleWidgetChildrenWithBasicLayoutSlot;//单一widget children和基础布局槽
};
它从一个TSingleWidgetChildrenWithBasicLayoutSlot继承,这个类可以挂载一个SWidget以及有一套遍历Children的接口,这里只有一个,不用管,可以看看布局计算这篇文章。
template<EInvalidateWidgetReason InPaddingInvalidationReason = EInvalidateWidgetReason::Layout>
class TSingleWidgetChildrenWithBasicLayoutSlot : public TSingleWidgetChildrenWithSlot<TSingleWidgetChildrenWithBasicLayoutSlot<InPaddingInvalidationReason>>
, public TPaddingSingleWidgetSlotMixin<TSingleWidgetChildrenWithBasicLayoutSlot<InPaddingInvalidationReason>, InPaddingInvalidationReason>
, public TAlignmentSingleWidgetSlotMixin<TSingleWidgetChildrenWithBasicLayoutSlot<InPaddingInvalidationReason>>
{
//...
}
这是一个模板类,从3个模板类继承,模板参数暂时不用管,这个是个枚举值,用来标记一个属性的。
然后这里使用了CRTP,奇异递归模板模式,主要是为了使用链式编程,也就是我们的声明式语法,还有C++编程技巧mixin,
mixin主要用来复用接口用的。
TSingleWidgetChildrenWithSlot //拥有一个SWidget的智能指针,到时候链式编程的时候赋值上去
TPaddingSingleWidgetSlotMixin //拥有一个FMargin,可以控制一个控件周围的填充
TAlignmentSingleWidgetSlotMixin //存了两个对齐的枚举值,水平对齐和垂直对齐
TSingleWidgetChildrenWithSlot
这个类从FChildren和TSlotBase
但是这是一个单一子槽节点,只能挂一个子节点。
我们看看FChildren,它只存了一个裸指针,SWidget的裸指针,只读的,不享有所有权,可以访问父级的SWidget。
它有如下的接口:
virtual int32 Num() const = 0;
virtual TSharedRef<SWidget> GetChildAt(int32 Index) = 0;//反正只有一个,Index只能填0
SWidget& GetOwner() const { return *Owner; }//返回父SWidget的裸指针,只读用的
//还有一些接口,可以自己看
class FSlotBase
{
private:
TSharedRef<SWidget> Widget;//可以挂一个SWidget,这个最重要
};
template<typename SlotType>
class TSlotBase : public FSlotBase
{
public:
SlotType& operator[](const TSharedRef<SWidget>& InChildWidget)
{
this->AttachWidget(InChildWidget);//这个函数很重要,可以连接SWidget
return static_cast<SlotType&>(*this);//链式编程
}
};
这里重载了括号运算符,可以挂载一个SWidget,比如:
SNew(SBorder)
[
SNew(SButton)//背景板下挂一个SButton
];
AttachWidget主要就是起赋值作用,还有把之前挂载的SWidget的给断开。
TPaddingSingleWidgetSlotMixin
//存了一个FMargin
SlateAttributePrivate::TSlateMemberAttribute<FMargin>
FMargin是一个边距类,存了4个浮点值。
struct FMargin
{
float Left;
float Top;
float Right;
float Bottom;
};
TAlignmentSingleWidgetSlotMixin
存了两个枚举值
EHorizontalAlignment HAlignment;
EVerticalAlignment VAlignment;
这些属性都在OnArrange函数里面会用到,会布局好,放入FArrangedChildren里面。
ComputeDesiredSize
我们看一下,固定大小是怎么计算的:
FVector2D SCompoundWidget::ComputeDesiredSize( float ) const
{
EVisibility ChildVisibility = ChildSlot.GetWidget()->GetVisibility();
if ( ChildVisibility != EVisibility::Collapsed )
{
//子槽的固定大小 + 子槽的边距大小
return ChildSlot.GetWidget()->GetDesiredSize() + ChildSlot.GetPadding().GetDesiredSize();
}
return FVector2D::ZeroVector;
}
OnPaint
我们看一下OnPaint函数。
int32 SCompoundWidget::OnPaint( const FPaintArgs& Args, const FGeometry& AllottedGeometry, const FSlateRect& MyCullingRect, FSlateWindowElementList& OutDrawElements, int32 LayerId, const FWidgetStyle& InWidgetStyle, bool bParentEnabled ) const
{
//一个CompoundWidget只画它的儿子
FArrangedChildren ArrangedChildren(EVisibility::Visble);
{
this->ArrangeChildren(AllottedGeometry, ArrangedChildren);//分配空间给它的子控件,会转去调用OnArrange函数
}
//是否开启,如果父亲这个属性标记为未开启,这个也会未开启,就不会绘制
const bool bShouldBeEnabled = ShoulBeEnabled(bParentEnabled);
//获取排列好的子widget
FArrangedWidget& TheChild = ArrangedChildren[0];
//FWidgetStyle和之前篇章描述的style不一样,就是3个FLinearColor,会一直递归传递下去,一直混合
FWidgetStyle CompoundedWidgetStyle = FWidgetStyle(InWidgetStyle)
.BlendColorAndOpacityTint(GetColorAndOpacity())
.SetForegroundColor(bShouldBeEnabled ? GetForegroundColor() : GetDisabledForegroundColor() );
int32 Layer = 0;
//递归画儿子
Layer = TheChild.Widget->Paint( Args.WithNewParent(this), TheChild.Geometry, MyCullingRect, OutDrawElements, LayerId + 1, CompoundedWidgetStyle, bShouldBeEnabled);
return Layer;
}
OnArrangeChildren
这个会调用ArrangeSingleChild。
void SCompoundWidget::OnArrangeChildren( const FGeometry& AllottedGeometry, FArrangedChildren& ArrangedChildren ) const
{
ArrangeSingleChild(GSlateFlowDirection, AllottedGeometry, ArrangedChildren, ChildSlot, GetContentScale());
}
ArrangeSingleChildren分配布局给子控件,我们看看怎么分配的:
template<typename SlotType>
static void ArrangeSingleChild(EFlowDirection InFlowDirection, const FGeometry& AllottedGeometry, FArrangedChildren& ArrangedChildren, const SlotType& ChildSlot, const FVector2D& ContentScale)
{
//获取可见性
const EVisibility ChildVisibility = ChildSlot.GetWidget()->GetVisibility();
//这个可见性是满足的,一般都是EVisibility::Visible
if (ArrangedChildren.Accepts(ChildVisibility))
{
const FVector2D ThisContentScale = ContentScale;
//计算填充,这个InFlowDirection一般都是从左往右,是个全局变量
//如果是从右往左,就交换左右边距
const FMargin SlotPadding(LayoutPaddingWithFlow(InFlowDirection, ChildSlot.GetPadding()));
const AlignmentArrangeResult XResult = AlignChild<Orient_Horizontal>(InFlowDirection, AllottedGeometry.GetLocalSize().X, ChildSlot, SlotPadding, ThisContentScale.X);
const AlignmentArrangeResult YResult = AlignChild<Orient_Vertical>(AllottedGeometry.GetLocalSize().Y, ChildSlot, SlotPadding, ThisContentScale.Y);
//放入安排好的儿子到ArrangedChildren数组
ArrangedChildren.AddWidget(ChildVisibility, AllottedGeometry.MakeChild(
ChildSlot.GetWidget(),
FVector2D(XResult.Offset, YResult.Offset),
FVector2D(XResult.Size, YResult.Size)
));
}
}
我们看一下AlignChild这个函数,是怎么控制单个儿子控件的布局的:
AlignChild
这个AlignmentArrangeResult就存了两个浮点值,一个偏移,一个大小。
template<EOrientation Orientation, typename SlotType>
static AlignmentArrangeResult AlignChild(EFlowDirection InLayoutFlow, float AllottedSize, float ChildDesiredSize, const SlotType& ChildToArrange, const FMargin& SlotPadding, const float& ContentScale = 1.0f, bool bClampToParent = true)
{
const FMargin& Margin = SlotPadding;
const float TotalMargin = Margin.GetTotalSpaceAlong<Orientation>();
const float MarginPre = ( Orientation == Orient_Horizontal ) ? Margin.Left : Margin.Top;
const float MarginPost = ( Orientation == Orient_Horizontal ) ? Margin.Right : Margin.Bottom;
const int32 Alignment = ArrangeUtils::GetChildAlignment<Orientation>::AsInt(InLayoutFlow, ChildToArrange);
//如果指定为水平填充,则会减去边距后,剩余的所有空间都留给子控件
switch (Alignment)
{
case HAlign_Fill:
return AlignmentArrangeResult(MarginPre, FMath::Max((AllottedSize - TotalMargin) * ContentScale, 0.f));
}
const float ChildSize = FMath::Max((bClampToParent ? FMath::Min(ChildDesiredSize, AllottedSize - TotalMargin) : ChildDesiredSize), 0.f);
//其余情况全部使用固定大小
switch( Alignment )
{
case HAlign_Left: // same as Align_Top
return AlignmentArrangeResult(MarginPre, ChildSize);
case HAlign_Center:
return AlignmentArrangeResult(( AllottedSize - ChildSize ) / 2.0f + MarginPre - MarginPost, ChildSize);
case HAlign_Right: // same as Align_Bottom
return AlignmentArrangeResult(AllottedSize - ChildSize - MarginPost, ChildSize);
}
// Same as Fill
return AlignmentArrangeResult(MarginPre, FMath::Max(( AllottedSize - TotalMargin ) * ContentScale, 0.f));
}
ComputeDesiredSize的作用就体现在这里,第一次递归计算固定大小,然后如果这个控件指定了填充,那么就不考虑这个固定大小,否则则考虑固定大小。

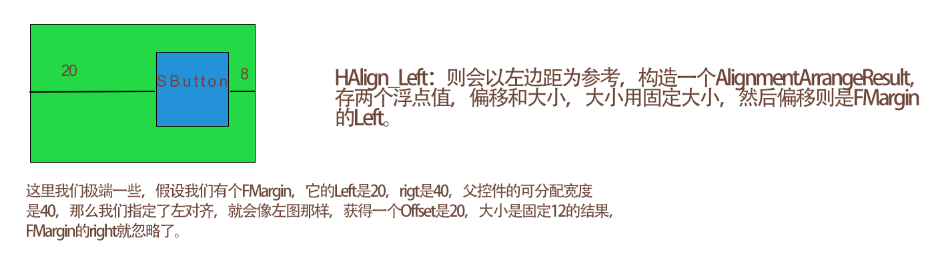

这里我们的图示使用了左对齐,绿色是父控件,蓝色是子控件,父控件的可分配宽度是40,那么如果指定了左对齐,则会忽略提供的FMargin的Right,使用FMargin的左对齐,以及固定大小。
